Drilling Rig Substructure
-
Steel Structure API Drilling Rig Substructure for NDC
Specs: Total 650 Ton per Unit for National Drill company Material Q355D Welding AWS D1.1 Test NDT as per rules, test for all important welds Surface treatment Sand blasted to sa2.5 in advanced blasting room. Painting Imported paint brand and warranty the anti corrosion. Design OEM as per client MDB All material certificate and test report to be submitted Packing sea worth packing Shipping The own Jetty can load the heavy cargos to port directly.
- Send Whatsapp
- E-mail：heidi@js-ql.com
Detail
Description:
Steel Structure API Drilling Rig Substructure for NDC
| Specs: | Total 650 Ton per Unit for National Drill company |
| Material | Q355D |
| Welding | AWS D1.1 |
| Test | NDT as per rules, test for all important welds |
| Surface treatment | Sand blasted to sa2.5 in advanced blasting room. |
| Painting | Imported paint brand and warranty the anti corrosion. |
| Design | OEM as per client |
| MDB | All material certificate and test report to be submitted |
| Packing | sea worth packing |
| Shipping | The own Jetty can load the heavy cargos to port directly. |
Company Information
Jiangsu Qiulin Special energy equipment joint stock Co.,Ltd founded in 2010, and mainly engaged in all kinds of non-standard vessels, cryogenic storage, coal water slurry complete equipment, steel structure etc. Qiulin employs advanced design capabilities,is equipped with modern manufacturing facilities,and a full range of in-house test equipment. Over the years, we adhere to the "customer-oriented" business philosophy to provide our customers with all kinds of equipment and have the competitive edge in quality, delivery and price.
Qiulin has been partner of many domestic and overseas famous company like CNPC, CNOOC, SINOPEC, Air Liquid, Air products, Yingde gases, Fuel Tech, ABB, Messer, Metso, Andritz, Reel, Morimatsu, Linder etc.
| Established | 2010 | ||
| Export rate | 30% | ||
| Site Area | 100000㎡ | ||
| Supply Scope | Pressure vessel, storage tanks, heat exchangers, reaction kattles, adsorber for air separation etc. Cryogenic liquid storage tanks, skid of gas production. Steel structure fabrication, steel structure equipment |
||
| Application | Oil and Gas, LNG and Marine , petrochemical, metallurgy, food and pharmaceutical, environmental protection | ||
| License | _Design and Fabrication License for Category I ,II & III (Class A1 and A2) of Chinese standard pressure vessel _ASME U,DOT/CNR _API, EN,AWS _ISO9001:2008, ISO14001:2004, OHSAS18001:2007 |
||
| Production capacity |
Monthly steel structure fabrication:3000T Maximum loading weight:200T Maximum diameter: 9.2M Lifting Height: 14M |
||
Fabrication Site
Equipment
 |
 |
 |
 |
| Laser Cutting machine | Milling machine L=12m | Automatic welding | H beam welding |
 |
 |
 |
 |
| Horizontal lather platform | Gantry boring and milling machine | CNC Milling machine | Vertical Lather dia.6.3m |

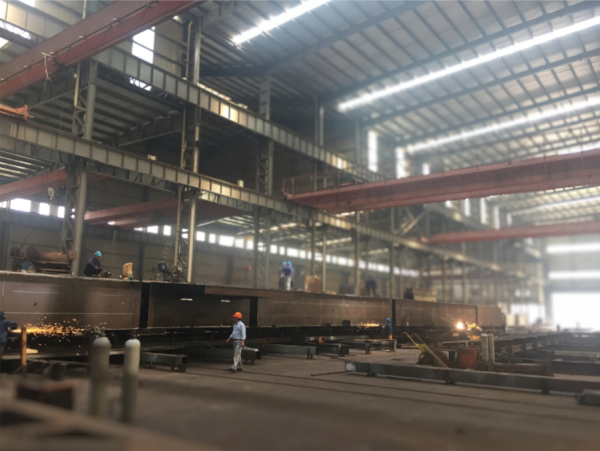

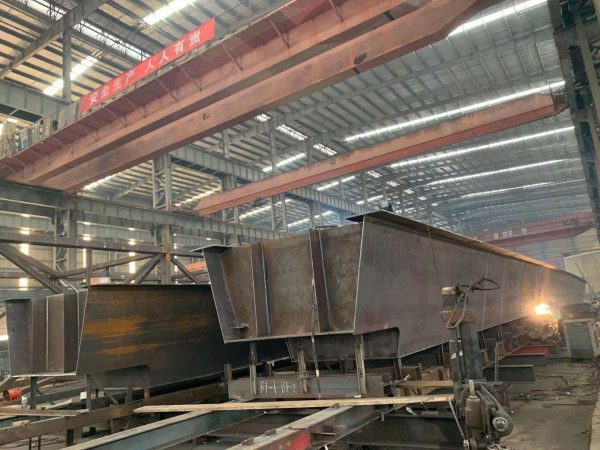

Fabrication workshop
Material test Lab
 |
 |
 |
| Cooling equipment +impact test | Tensile test | |
 |
 |
|
| Chemical content test | Microscope | Hardness test |
Painting room and RT inspection Room
 |
 |
 |
 |
| Sandblasting room size 16mx40m Painting room size 16mx40m |
Three painting rooms size 16mx40m each |
Advanced UT/MT/RT equipment. 4 RT rooms, biggest one is 8mx24m |
|
Transportation
Typical project cases
 |
 |
 |
 |
| Metallurgical equipment-Mill | Metallurgical equipment | Metallurgical equipment Anode furnace |
Metallurgical equipment Kaldo furnace |
 |
 |
 |
 |

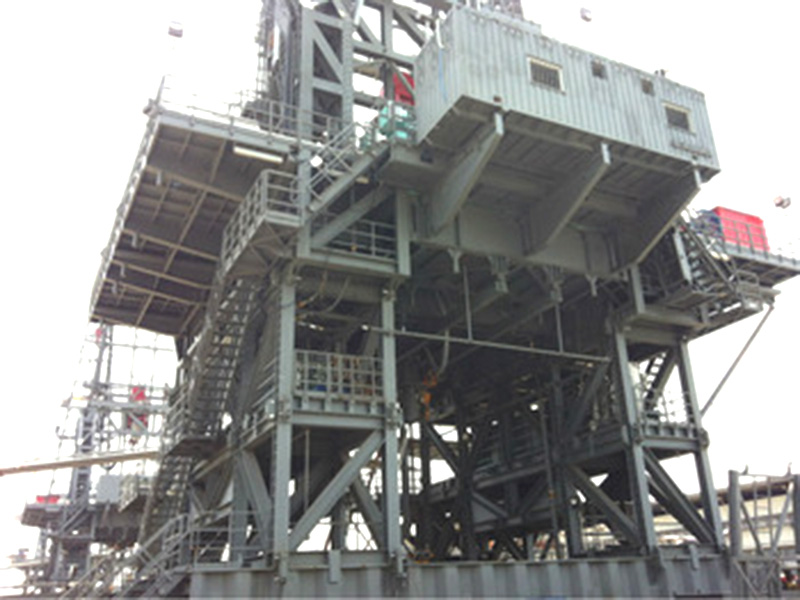

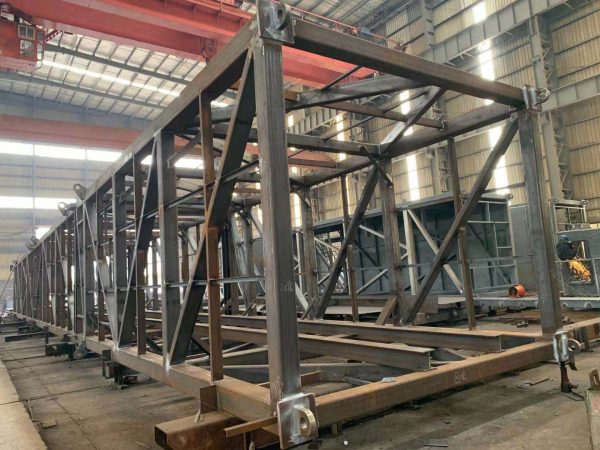

| OEM Skid Type Steel Structure | Box Steel Structure Frames | light steel mill building structure | Oil Rig platform |
Others products
 |
 |
 |
 |
| LNG tank | MT tanks | Absorption Tower | Reaction Kettle |
